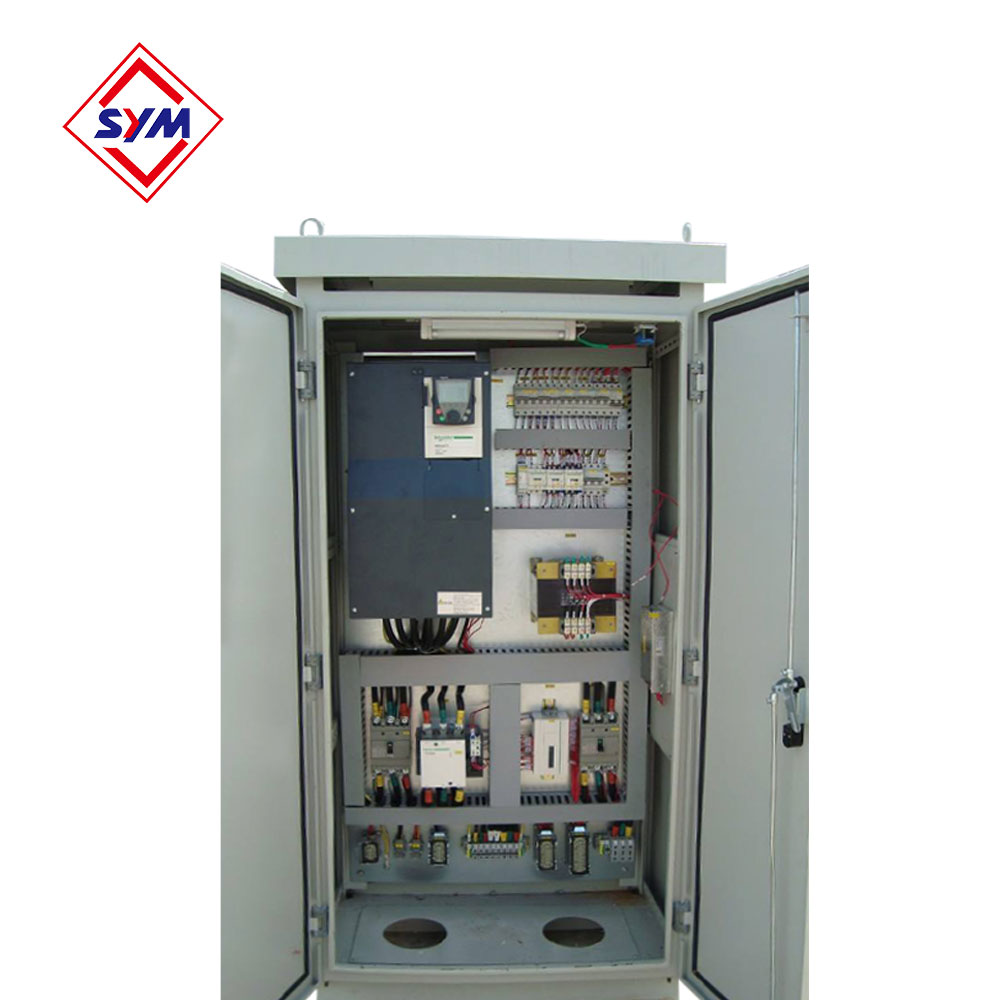

Hoisting Control Panel Box

  • NORMAL CONTROL
  • PLC CONTROL

Description

RCS tower crane electrical control cabinet is a tower crane hoist electrical control system solution independently designed and developed by our company on the basis of advanced tower crane control technologies .It has such characteristics as high working rate,good speed regulation performance,smooth working ,high efficiency and so on.the system contains cabinets A,L and HF,cabinet A is responsible for providing power for each mechanism of the tower crane and controlling & protecting traveling mechanism;cabinet L takes charge of control and safety protection of hoisting mechanism; cabinet HF is in charge of control and protection of slewing mechanism and luffing mechanism. Temperature range:-20℃-+40℃humidity:lower than 85%RH(no moisture condensation)
Altitude:the altitude of installation location shall not be higher than 1000 m.power grid quality:the voltage fluctuation range shall not exceed ±10% of the rated voltage. power capacity shall be guaranteed fully



NAME MODEL POWER(HP) LOAD(t) SPEED ADJUSTMENT MODE
NORMAL CONTROL 45RCS 45 8 5 Dual series motor speed
55RCS 55 10
70RCS 70 10-20
PLC CONTROL 45RCS 45 8
55RCS 55 10
70RCS 70 10-20
box panel
box panel

Additional information

model

70RCS, 55RCSor LVF hoist mech. 45JLF-L
